Automatic Fume Hood Sash Systems

Automatic Fume Hood Sash Systems for Powered Window Movement An automatic fume hood sash system coordinates powered sash travel with position feedback, operator commands, presence detection, anti-pinch protection, and the mechanical drive. The products in this category are individual system components as well as the central sash controller. Their compatibility must be reviewed as one operating chain rather than selected independently by appearance.

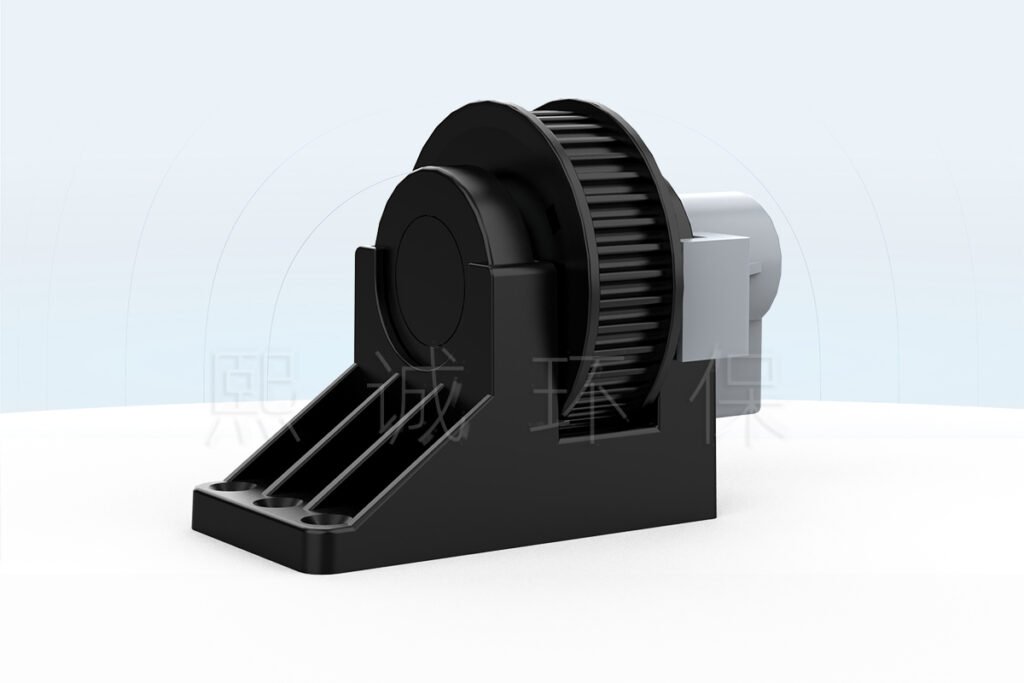

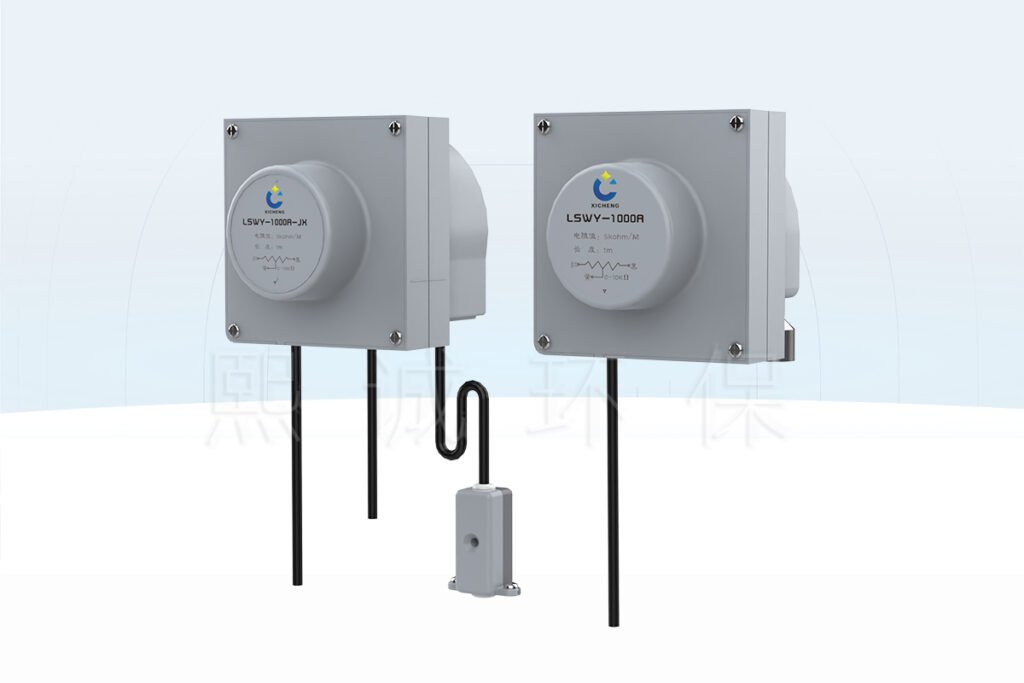

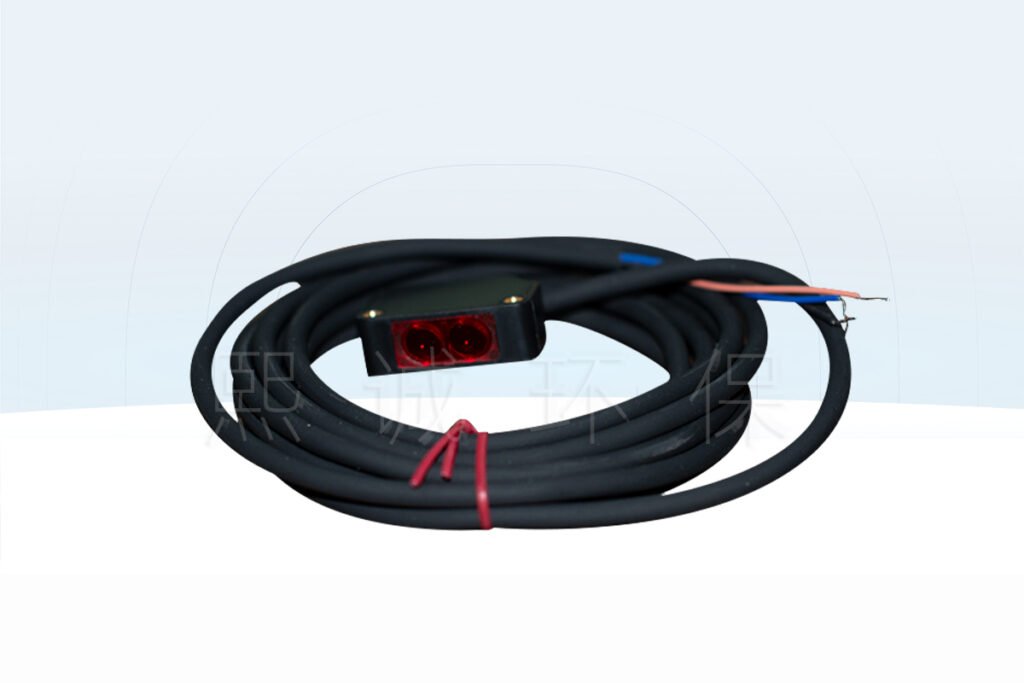

Build the System Around the Sash Mechanism The automatic sash controller processes commands and safety inputs. The sash motor supplies the drive, while string or rotary position sensors report window movement. Occupancy sensing can support automatic close logic, and an infrared sash safety sensor detects an obstruction in the protected path. The pulley and timing-belt assembly transfers motion to the sash mechanism.

Information Required for Component Matching Provide the hood and sash drawings, sash mass, travel, opening direction, cable or belt path, available mounting space, supply voltage, control-panel arrangement, desired manual and automatic behavior, sensor locations, obstruction-detection zone, alarm sequence, and required interfaces. Confirm the complete supplied scope, including brackets, fasteners, cables, pulley geometry, and commissioning responsibility.

Automatic sash equipment changes window position; it does not by itself prove face velocity or containment. Where sash position participates in an energy-saving ventilation sequence, coordinate it with the selected fume hood controller, airflow sensor, exhaust device, balancing work, and site performance tests.
